Ranges
-
JD630DTWW

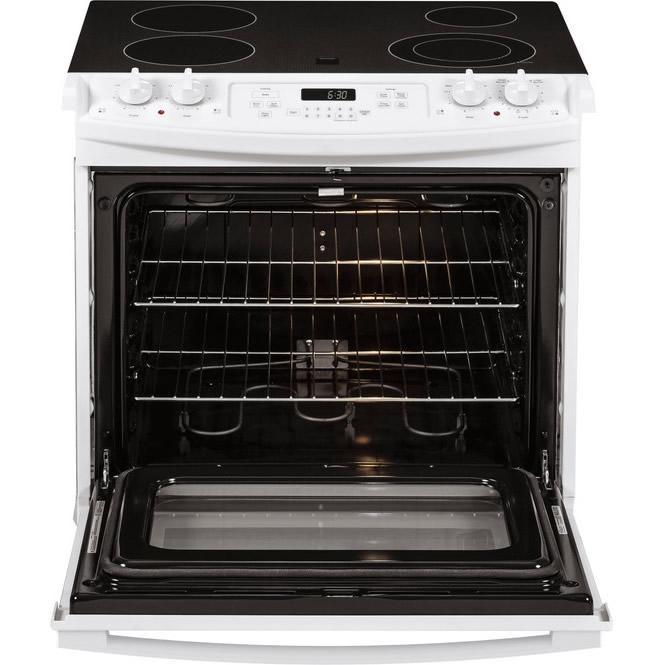

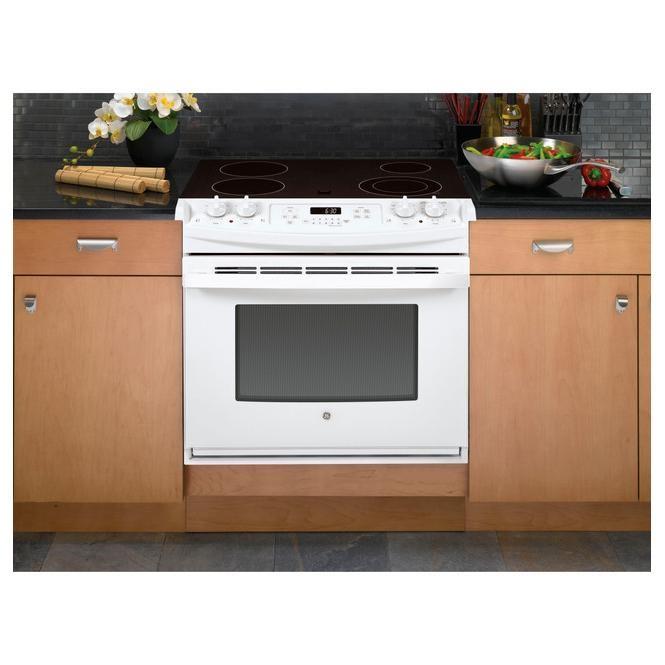

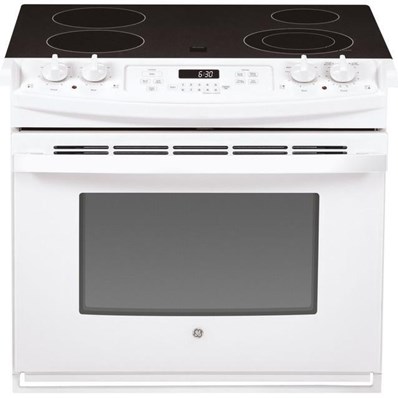

(Ranges - Electric)GE drop-in electric range features 9"/6" Power Boil element, a Dual-element Bake, a Ceramic glass cooktop and a Black gloss oven interior.
Specifications / Choose an option
| GENERAL | |
|---|---|
| Fuel Type | Electric |
| Installation Type | Drop-in |
| Color | White |
| Manufacturer Color | White |
| Appliance Care | Cooktop Cleaning: Cream Included Sponge |
| COOKTOP | |
| Burners/Elements | 4 |
| Burners/Elements Output |
• Element - Left Front: 2000W • Element - Left Rear: 2000W • Element - Right Front: 3000W Power Boil • Element - Right Rear: 1200W |
| Burner/Element Size |
• Element - Left Front: 8" • Element - Left Rear: 8" • Element - Right Front: 9"/6" • Element - Right Rear: 6" |
| Elements | Smoothtop |
| OVEN | |
| Capacity (cu. ft.) | 4.4 cu ft |
| Number of Ovens | Single |
| FEATURES | |
| Control Lock | Yes |
| Delay Bake/Start | Yes |
| Digital Temperature Display | Yes |
| Oven Light | Yes |
| Self-Cleaning | Yes |
| Additional Information |
• Made in America: 70 to 90% U.S. Content • Control Knobs: Color-Matched, Weighted • Handle: Color-Matched, Designer Style • Installation: Flush Appearance • Oven Door Features: Big View Oven Window, Glass Door • Control Location: Front • Audible Preheat Signal • Auto Oven Shut-Off with Override • C° or F° Programmable • Self-Clean Oven Door Lock: Automatic • Control Type: Digital Temperature Display, Electronic, Touchpads • Heating Element "ON" Indicator Light: 2 • Hot Surface Indicator Lights: 4 • Interior Oven Light: 1 Incandescent • Oven Features: 6-Pass Bake Element, 6-Pass Broil Element • Oven Rack Features: 2 Oven Racks, 7 Rack Positions • Melt Setting: Yes |
| ELECTRICAL INFORMATION | |
| Information |
• Amp Rating at 208V: 40 • Amp Rating at 240V: 40 • Bake Wattage: 3410W • Broiler Wattage: 3420W • KW Rating at 208V: 8.9 • KW Rating at 240V: 11.9 |
| CERTIFICATIONS AND APPROVALS | |
| ADA Compliant | Yes |
| Sabbath/Star-K | Yes |
| Information | Listed by Underwriters Laboratories |
| DIMENSIONS | |
| Class Width | 30" |
| Width | 31.25 inch(es) / 79.38 cm |
| Height | 27 inch(es) / 68.58 cm |
| Depth (Without Handles) | 25.75 inch(es) / 65.40 cm |
| Depth (Including Handles) | 28.5 inch(es) / 72.39 cm |
| Weight | 152.01 lb(s) / 68.95 kg |
| Additional Dimensions |
• Cooktop Width: 31.25 in • Cabinet Opening: 30.0 in • Cabinet Width: 30.0 in • Oven Interior Dimensions (W x H x D) (in.): 24 x 17-1/2 x 18-1/4 • Depth with Door Open: 44.625 in |
| SHIPPING DIMENSIONS | |
| Width | 30.8 inch(es) / 78.23 cm |
| Height | 39.5 inch(es) / 100.33 cm |
| Depth | 33.5 inch(es) / 85.09 cm |
| Weight | 178.99 lb(s) / 81.19 kg |
| WARRANTY | |
| Warranty |
• Parts Warranty: Limited 1-year entire appliance • Labor Warranty: Limited 1-year entire appliance |
| UPC | |
| UPC# | 084691909415 |
-
